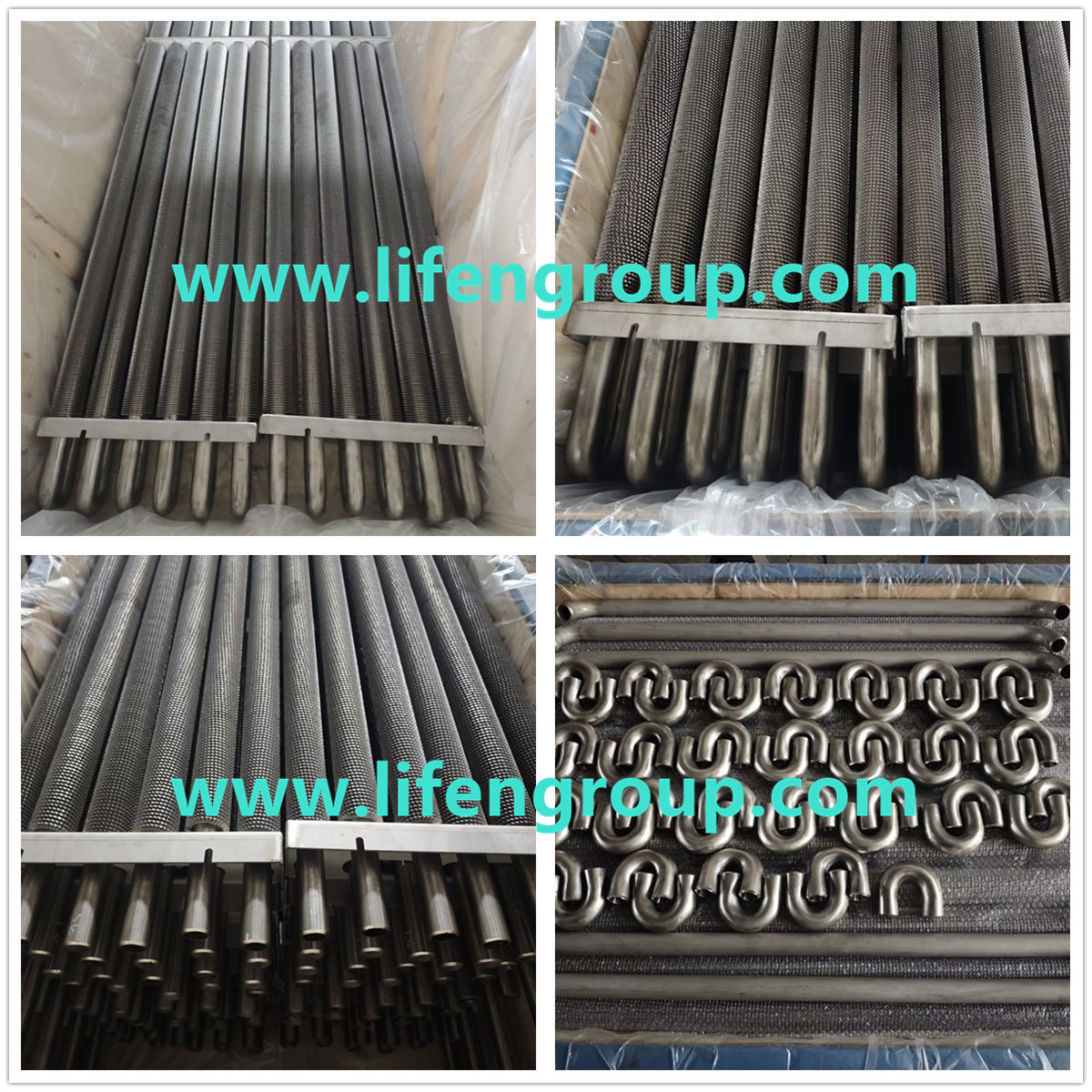

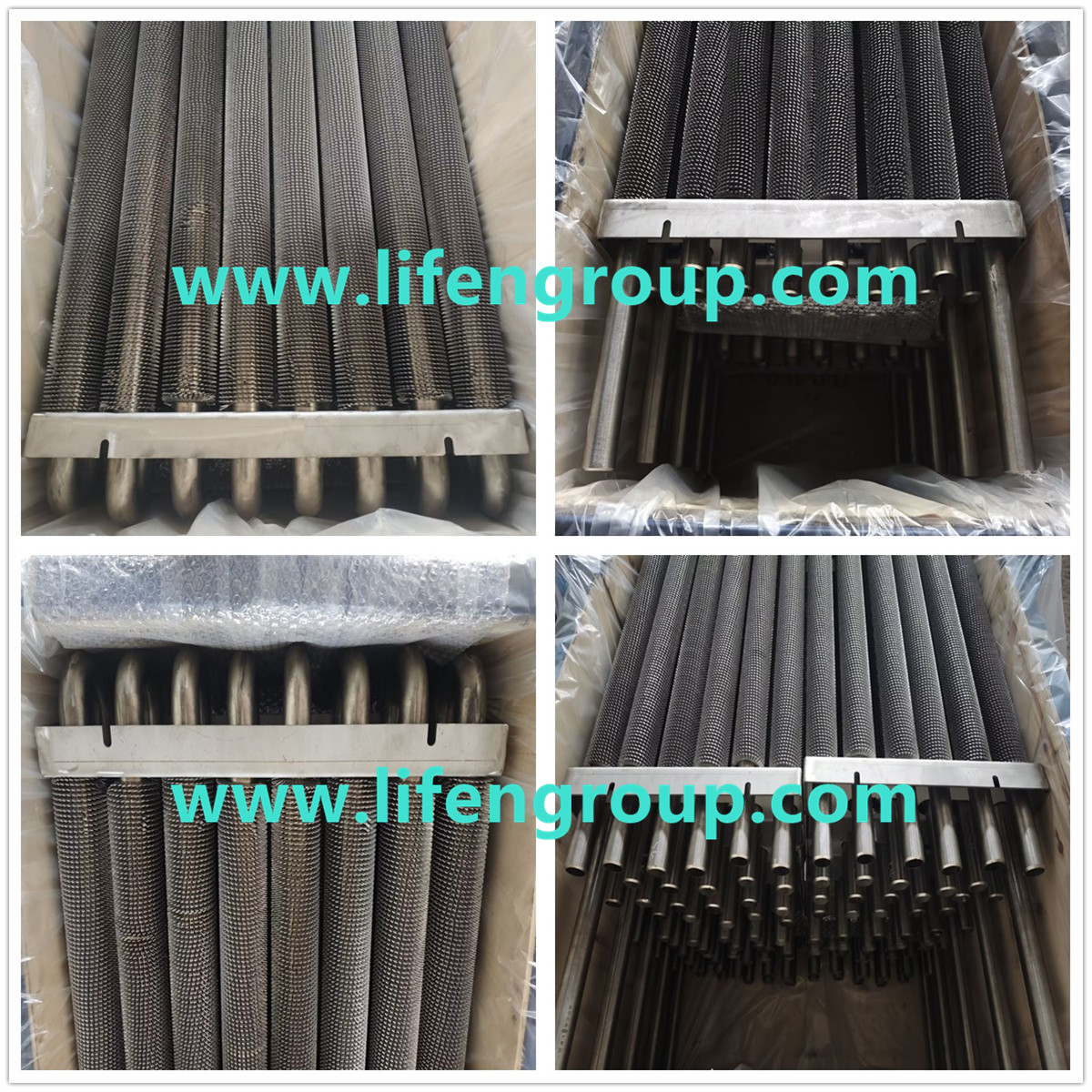

ASME SA-213 TP316L Finned Tubes And Bends

Stainless steel serrated finned tubes have always been our company's strength , the finned tubes have four sizes .

FINNED TUBES SIZE : OD 38 x WT3.6(Min.) as per drawing .

TUBE MATERIAL : ASME SA-213 TP316L .

FINNED SIZE : Width16mm x Thk1.2mm/Width13.5mm x Thk1.2mm .

FINNED MATERIAL : ASME SA-240 316L .

The product also include some seamless stainless steel bends .

BEND SIZE : OD38 x WT3.6(Min.) R=37.5, Straight Length: 40mm .

BEND MATERIAL : ASME SA-213 TP316L .

The products are all customized according to the requirements of customers .
